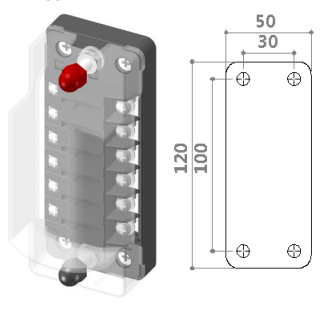

FB-1901
6 Circuits with Cover and Negative Bus ELECTRICAL: Main line:
terminal rating:M6 threaded studs
(75A 32V DC.max) wire size:#4-6 AWG Single line:
terminal rating:M 4 threaded studs
(20A 32V DC.max) wire size:#12-16 AWG Material:
Base: PA66 Cap: PC
Terminal: Nickel plated copper Screw:Stainless steel Label: PPx70
Accepts ATO or ATC fuse1A to 20A

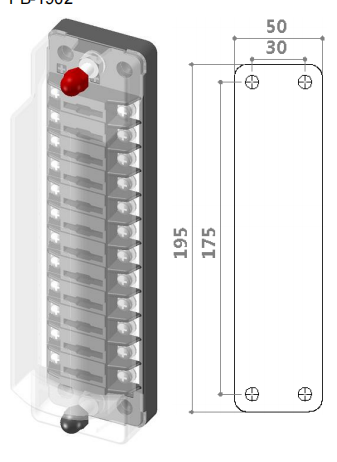

FB-1902
12 Circuits with Cover and Negative Bus ELECTRICAL: Main line:
terminal rating:M6 threaded studs
(75A 32V DC.max) wire size:#4-6 AWG Single line:
terminal rating:M 4 threaded studs
(20A 32V DC.max) wire size:#12-16 AWG Material:
Base: PA66 Cap: PC
Terminal: Nickel plated copper Screw: Stainless steel Label: PPx70
Accepts ATO or ATC fuse 1A to 20A

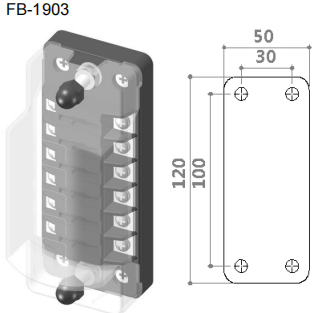

FB-1903
ELECTRICAL: Single line:
terminal rating:M4 threaded studs
(20A 32V DC.max) wire size:#12-16 AWG Material:
Base:PA66 Cap: PC
Terminal: Nickel plated copper Screw: Stainless steel Label:PPx70
Accepts ATO or ATC fuse1A to 20A

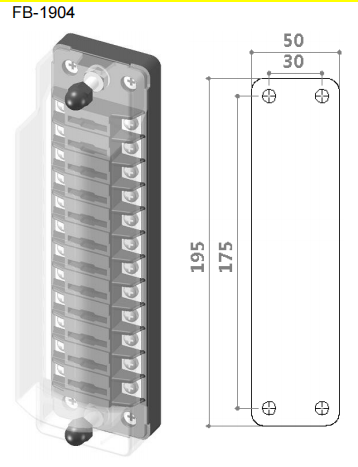

FB-1904
ELECTRICAL: Single line:
terminal rating:M4 threaded studs
(20A 32V DC.max)
wire size:#12-16 AWG Material:
Base: PA66 Cap: PC
Terminal:Nickel plated copper Screw: Stainless steel Label: PPx70
Accepts ATO or ATC fuse 1A to 20A
